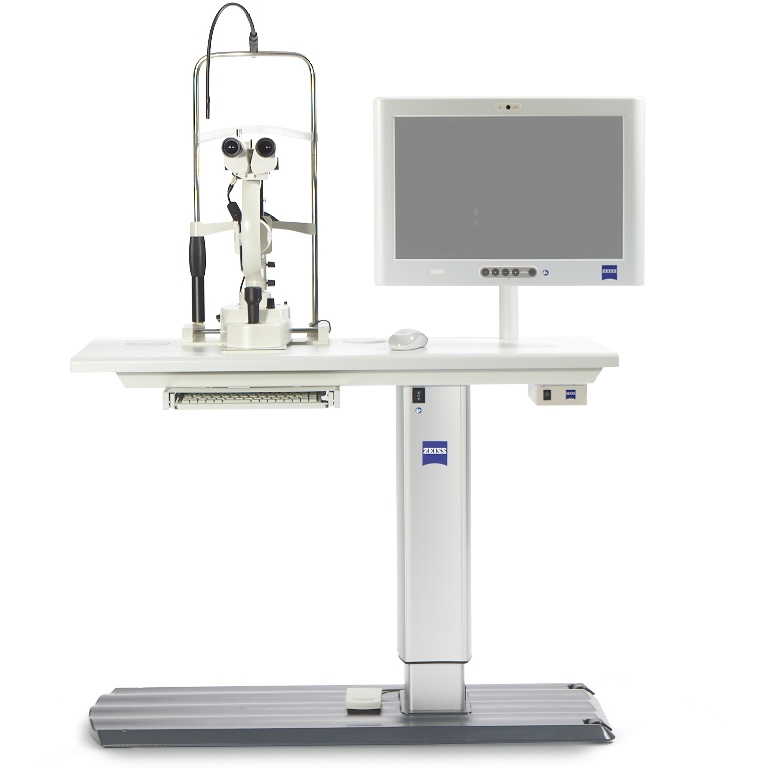

ZEISS SL 115 Classic including Instrument Table IT 1060, SL Imaging Module and SL Workstation
Product ID:
000000-2036-444
Focus on the essentials
A straightforward instrument focused strictly on the essentials – the ZEISS SL 115 Classic slit lamp delivers outstanding optical and mechanical performance and combines affordability, superb precision and reliability. Its convenient, single-handed, practice-oriented operation can be further enhanced with an integrated imaging solution as well as other optional accessories to support additional applications.
Important note: The pictured fixation light is not included in the standard delivery package.
A straightforward instrument focused strictly on the essentials – the ZEISS SL 115 Classic slit lamp delivers outstanding optical and mechanical performance and combines affordability, superb precision and reliability. Its convenient, single-handed, practice-oriented operation can be further enhanced with an integrated imaging solution as well as other optional accessories to support additional applications.
Important note: The pictured fixation light is not included in the standard delivery package.
Prices visible after login
Excl. GST
- Technical Data
-
Important notice: Please refer to the product brochures available in the tab “More information” to view the complete list of technical specifications, especially regarding the SL Imaging Module and its minimal requirements for computer hardware.ZEISS SL 115 Classic Technical data Magnification 8x, 12x, 20x with 10x eyepieces Field of view diameter 25 … 10 mm Eyepiece magnification Super high-eyepoint eyepieces 10x; compensation of ametropia ±8 D Width of slit image Continuous from 0 to 14 mm Length of slit image In steps 0.5 / 3.5 / 8 / 14 mm; continuous 1 … 14 mm Rotation of slit image Continuous ±90° Decentration of slit image ±4° horizontally, click stop at 0° Swivel range of slit projector 180°, scale for angular difference; click stop at 0° Angle of incidence 0° Filters Blue, green (red-free), swing-in; heat-reflecting filter, permanently integrated; diffusing screen, swing-in; barrier filter (yellow) Free working distance
exit prism/patient’s eye73 mm / 2.9 in Travel of instrument base 30 mm (vertical) / 1.2 in (vertical)
110 mm (lateral) / 4.3 in (lateral)
90 mm (axial) / 3.5 in (axial)Vertical travel of headrest 59 mm / 2.3 in Projection illumination 6 V / 10 W halogen lamp Brightness Continuously adjustable Rated voltage 100 … 240 V ±10%, self-sensing, 50 / 60 Hz Weight Basic instrument 9.75 kg (21.49 lbs); headrest 1.25 kg (2.76 lbs) Dimensions of basic instrument
(W x H x D)300 mm x 430 mm x 355 mm
11.8 in x 16.9 in x 13.9 in - Standard Delivery Package
-
- FAQ
-
- Further Information
-
Get to know the SL 115 Classic:
- Standard Delivery
-
